china water jet machine

Model No.︰

Edge 1525B

Brand Name︰

Hypiont

Country of Origin︰

China

Unit Price︰

US $ 40000 / pc

Minimum Order︰

1 pc

Share on:

Product Description

Product Application


Hypiont® water jet cutting machine is a high-pressure water jet cutting machine that utilizes straight pure water cutting or abrasive waterjet cutting to cut several types of material. Hypiont® is a heavy-duty precision, ground ball screw designed system for maximum precision and rigidity. The Hypiont® is built to the most stringent standards in the machine tool industry.

Hypiont® using the water jet high-pressure cutting process to cut material thicknesses from gauge up to 200mm(8").
Edgestream® will cut material such as Aluminum, Armor Plate, Brass, Carpet, Copper, Glass,Granite, Leather, Marble, Mild Steel, Plastic, Stainless Steel, Stone, Tile, Titanium,Ceramic tile,Acrylic,Fiber glass ,Rubber,Foam,Composite materials ...


Perfect china water jet cutting machine:
Hypiont® Waterjet cutting machine is achieved by forcing a large volume of pure water under high pressure through a small orifice in the cutting nozzle. The accelerated steam of water leaving the nozzle impacts the material and starts the cutting process. Kerf from the accelerated stream of water is extremely narrow. This pressure is then concentrated in a small area on the material which starts to erode the material. Softer materials can be cut with water pressure. Harder materials require the use of an abrasive feed system, such as metal cutting. The abrasive is introduced into the high pressure water stream, which then starts the erosion of the harder materials. Although waterjet machining is the slowest cutting process, there are definite advantages that outweigh its' pace:
•No Heat-Affected Zone
•No Mechanical Stresses
•Very Narrow Kerf
•No need for Secondary Operations
•Smooth Surface
•Can Cut Various Materials
•Can Process Extremely Detailed Parts
•Minimal loss of material
•Environmentally Friendly

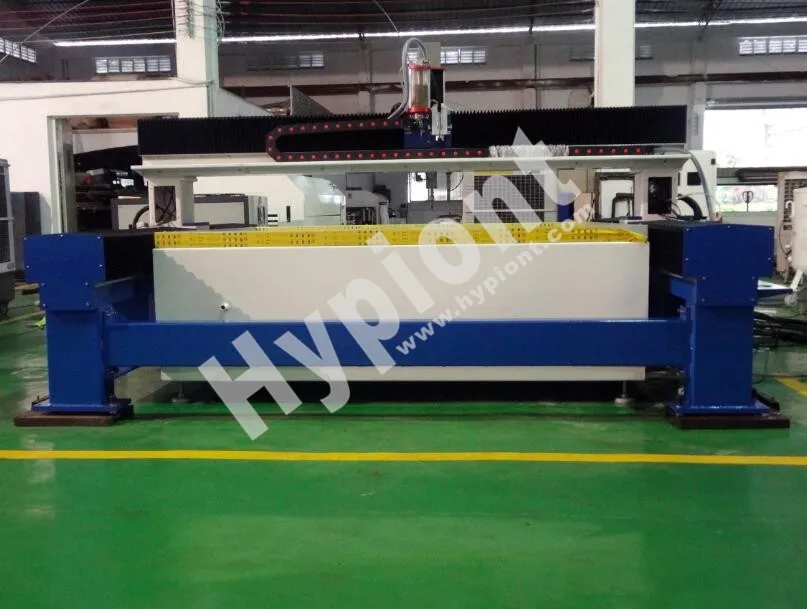

Edge1525B water jet cutting machine



Water jet cutting machine Edge1525B always be used for cutting metal marble granite glass working pieces famous for it’s high stability and precision and own perfect combination of proven performance, robust design, and exceptional price outperforms the standard waterjet offerings in the industry and wins in value with an extended cutting area and extra strength beams and ball screws . Edge1525B utilizes German 1+F ball screws on the main beam and Japan THK guiding rail on the crossbeam which ensures accuracy across the additional length of gantry. A versatile, top of the line cutting system, from 2D to basic five axis cutting .Edge1525B waterjet cutting machine is an versatile and efficient machine tool that can be found in almost any professional job shop or industry. With a huge range of optional settings it can be designed to meet a wide range of cutting requirements, both 2D and 3D cutting. Based on Hypiont top class mechanical design it is a machine model for experts and tough demands .


Workmanship
Due to excellent cutting table accessibility on a machine built for the rigors of waterjet cutting with robust mechanical design, integrated machine systems, intuitive user control, multiple table sizes, and several configurations available,waterjet cutting machine Edge1525B sets you up for success. With waterjet cutting machine Edge1525B , you won't sacrifice performance, structural integrity, or the overall quality of your system. Hypiont also use laser calibration to check the high precision according to the international standard and high market requirement . Edge1525B will be you perfect choose.

SPECIFICATIONS FOR EDGE1525B WATER JET CUTTING MACHINE

no

name

paramter

unit

1

width of machine

1600

mm

2

length of machine

2600

mm

3

height of machine

2000

mm

4

height of table

1800

mm

5



X - axis

1500

mm

6

Y - axis

2500

mm

7

weight

3500(subject to the final configuration)

kg

8

max (x,y)positional speed

10

meter/min

9

tolerance (squre/cirlce)

±0.02 / ±0.03

mm

10

accuracy

(±0.05“inch per 3'feet at 68° ±3°F)(±0.127 mm per 1M at 20 ° ±3 °C)

11

repeatability

(±0.0025“inch at 68°± 3° F )(0.0635mm at 20° ± 3 °C)

12

cutting head options

3 axis /4 axis /5 axis dynamic linkage axis waterjet head

Main Features

The fast, efficient, and precise Hypiont® Center provides top performance in waterjet machining of complex parts from many materials. From simple metals to complex composites, the 4’ 7” square cutting area of the proven is ideal for rapid prototyping and just-in-time manufacturing of small to medium-sized parts. With simple fixturing and easy access to the cutting table, setup times are significantly reduced, increasing productivity and profitability..

• Fastest cutting speeds and best precision compared to any abrasive water jet in high pressure industry and is backed by our exclusive Hypcam®Software with real world cutting data
• Programmable Motorized Z-Axis with a precision Hypiont® 5i Nozzle Assembly can boost cutting productivity and process efficiency
• Tilt-A-Jet® taper compensating abrasivejet cutting head (available as an option)
• Precision X-Y Axis rigidly mounted to the cutting table
• Pre-loaded linear bearings and precision ball screws
• Low maintenance, high reliability scissor-style hard plumbing
• Drive system sealed against water, dirt, and grit
• Easy operator access to the work area
• High efficiency Generation USA Flow® pump systems available in 30, 40, or 50 hp with operating efficiencies up to 90%
• Robust and accurate design for tight tolerance cutting and reliable operation
• Rapid Water Level Control for quiet and clean submerged cutting
• Bulk Abrasive Delivery System transports garnet from the assembly’s large hopper into the Zero Downtime Hopper located on the Z-Axis
• Optional Variable Speed Solids Removal System (VS-SRS) designed for tough industrial use increases uptime through automated solids removal
• Shipped as a completely pre-assembled and factory-tested system

Certifications

Detailed Images

Productiv process

Name :Flatness
High precision milling machine
Original: Japan
Hypiont's waterjet milled by Japan high precision milling machine to guarantee the high flat surface of the main beam of the waterjet table then keep the high precision during the cutting process

Firmness

Name: Annealing treatment
Brand: AICHELIN
Original: German
Anneraling treatment for Hypiont's waterjet each parts to ensure it's machine bed strong and non deformation

 Coordinate

Name: 3 axis coordinate meter for Hypiont's parts
Brand: DANTISIN
Original: Swiss
Hypiont uses 3 axis coordinate meter to get the standard paramter to guarantee the quality of the part during the assembly line .

Caliberation

Name: laser caliberation
Brand: Renishaw
Original: UK
Hypiont uses laser caliberation to check and guid rail straightness and parallelism

Hardness test


Hypiont use metal hardness tester to keep every parts of the intensifer including the high pressure parts and low pressure parts working in it's best situation for the safe reason .

Accurate installation


Hypiont use precision meter to guarantee the ball screw and guiding rail installed parallel and flat on the main beam for the long time running and keep the high precision as well .

Max production


Hypiont standardized production ,for all of our products ,we only let our experienced engineer to assemable the waterjet to guarantee the workmaship to meet the requirement for our clients .



Price Terms︰ Fob Nanjing /Shanghai
Payment Terms︰ T/T , L/C
Packing︰ 1. Whole film packaging machine; 2. Anti-collision package edge; 3. Fumigation-free plywood wooden box with iron binding belt. 4. Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time. 5. All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.Avoiding all damages that could happen in the delivery process. 6. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Lead Time︰ 35 days
Standards Certificate︰ CE .TUV. ISO 9001
