Product Description

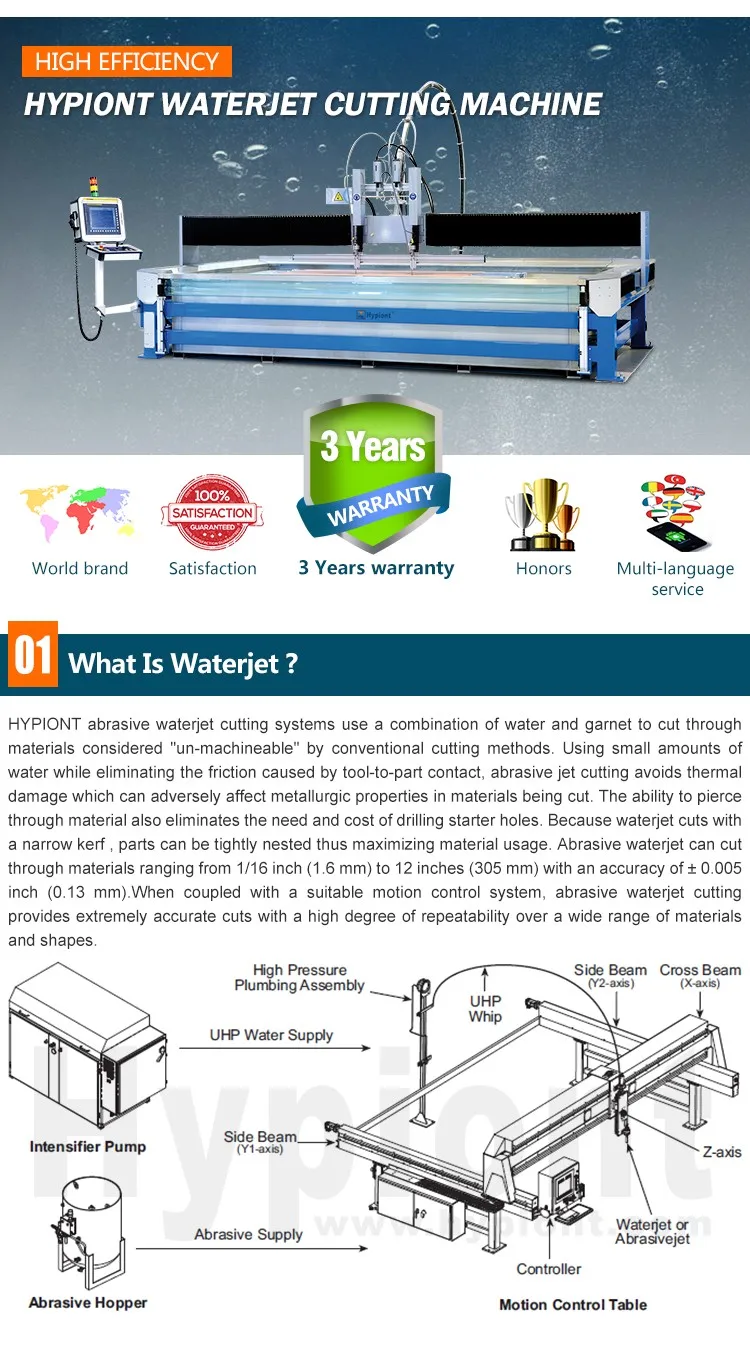

Edge3020 water jet cutting machine

Water jet cutting machine Edge3020 always be used for cutting working pieces famous for it’s high stability and precision and own perfect combination of proven performance, robust design, and exceptional price outperforms the standard waterjet offerings in the industry and wins in value with an extended cutting area and extra strength beams and ball screws . Water jet cutting machine Edge3020 utilizes German 1+F ball screws on the main beam and Japan THK guiding rail on the crossbeam which ensures accuracy across the additional length of gantry. A versatile, top of the line cutting system, from 2D to basic five axis cutting .Edge 3020 water jet cutting machine is an versatile and efficient machine tool that can be found in almost any professional job shop or industry. With a huge range of optional settings it can be designed to meet a wide range of cutting requirements, both 2D and 3D cutting. Based on Hypiont top class mechanical design it is a machine model for experts and tough demands .


Due to excellent cutting table accessibility on a machine built for the rigors of waterjet cutting with robust mechanical design, integrated machine systems, intuitive user control, multiple table sizes, and several configurations available,water jet cutting machine Edge3020 sets you up for success. With water jet cutting machine edge3020 , you won't sacrifice performance, structural integrity, or the overall quality of your system. Hypiont also use laser calibration to check the high precision according to the international standard and high market requirement . Edge3020 will be you perfect choose.

Specification of Edge3020 water jet cutting machine
NO. Name Parameter Unit
1 Width Machine 3100 mm
2 Length Machine 2100 mm
3 Height Machine 2200 mm
4 Hieght of table  2180 mm
5 X axis 3000 mm
6 Y axis 2000 mm
7 Weight 4600(subject to the final configuration) kg
8 Max(X,Y)positional speed 15 meter/min
More information
9 Accuracy

(±0.05“inch per 3'feet at 68° ±3°F)

(±0.127mm per 1M at  20 ° ±3 °C)

10 Repeatability  (±0.0025“inch at 68°± 3° F )(0.0635mm at 20° ± 3 °C)
11 Cutting head model 3 axis /4 axis /5 axis linkage

water jet cutting machine

water jet cutting machinewater jet cutting machine

water jet cutting machine

water jet cutting machine

water jet cutting machine


water jet cutting machine

Advantage & App

water jet cutting machine

Price Terms︰ FOB Nanjing
Payment Terms︰ T/T L/C
Packing︰ 1. Whole film packaging machine; 2. Anti-collision package edge; 3. Fumigation-free plywood wooden box with iron binding belt. 4. Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time. 5. All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.Avoiding all damages that could happen in the delivery process. 6. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Lead Time︰ 40days
Standards Certificate︰ ISO 9001:2008 CE ISO 14001:2004
