Stone waterjet cutting machine in a good price in China

Model No.︰

Edge 3040

Brand Name︰

Hypiont

Country of Origin︰

China

Unit Price︰

US $ 59000 / pc

Minimum Order︰

1 pc

Share on:

Product Description

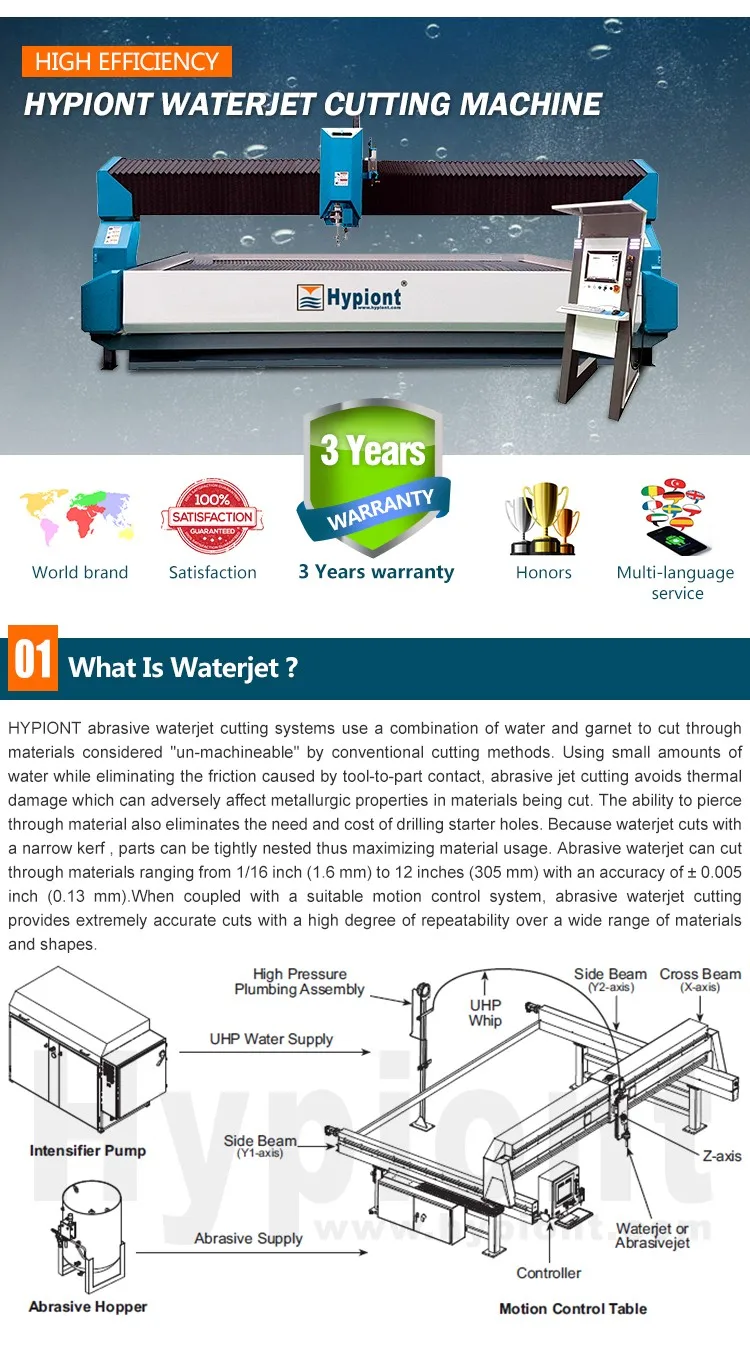

Edge3040 waterjet cutting machine

Edge3040 stone waterjet cutting machine is always used for cutting big working pieces famous for it’s high stability and precision and own perfect combination of proven performance, robust design, and exceptional price outperforms the standard waterjet offerings in the industry and wins in value with an extended cutting area and extra strength beams and ball screws . A versatile, top of the line cutting system, from 2D to basic five axis cutting .Edge3040 stone waterjet cutting machine is an versatile and efficient machine tool that can be found in almost any professional job shop or industry. With a huge range of optional settings it can be designed to meet a wide range of cutting requirements, both 2D and 3D cutting. Based on Hypiont top class mechanical design it is a machine model for experts and tough demands . Our patented Dynamic Waterjet works unlike any other system. Using our EdgeStream™ technology, Dynamic Waterjet not only counters stream lag and taper (characteristics inherent to waterjet), but also automatically tilts and monitors the speed of your cutting head on the fly. This ensures the part you pick up off the table is cut as quickly as possible, and to high precision.

Workmanship

Due to excellent cutting table accessibility on a machine built for the rigors of waterjet cutting with robust mechanical design, integrated machine systems, intuitive user control, multiple table sizes, and several configurations available, the Edge3040 stone waterjet cutting machine sets you up for success. With Edge3040 stone waterjet cutting machine you won't sacrifice performance, structural integrity, or the overall quality of your system. Hypiont also use laser calibration to check the high precision according to the international standard and high market requirement .Hypiont as one of the best stone waterjet cutting machine supplier /manufacture in china own more than chinese 46 patents in the industry of abrasive high pressure cutting machine technology. We always use our competitive price and high quality machine and good afterservice to meet clients demand rather than the advertising gimmick to attrack client ,hope we we own the opportunity to cooperate with you .

Specification of Edge3040 waterjet cutting machine
NO. Name Parameter Unit
1 Width Machine 3100 mm
2 Length Machine 4100 mm
3 Height Machine 2200 mm
4 Hieght of table  2180 mm
5 X axis 3000 mm
6 Y axis 4000 mm
7 Weight 4800(subject to the final configuration) kg
8 Max(X,Y)positional speed 15 meter/min
More information
9 Accuracy

(±0.05“inch per 3'feet at 68° ±3°F)

(±0.127mm per 1M at  20 ° ±3 °C)

10 Repeatability  (±0.0025“inch at 68°± 3° F )(0.0635mm at 20° ± 3 °C)
11 Cutting head model 3 axis /4axis /5 axis dynamic linkage

waterjet cutting machine for glass cutting with TUV CE ISO9001 certifications and 3 Years warranty

waterjet cutting machine for glass cutting with TUV CE ISO9001 certifications and 3 Years warrantywaterjet cutting machine for glass cutting with TUV CE ISO9001 certifications and 3 Years warranty

Parts & Function

waterjet cutting machine for glass cutting with TUV CE ISO9001 certifications and 3 Years warranty

Testing&Installation

waterjet cutting machine for glass cutting with TUV CE ISO9001 certifications and 3 Years warranty

Packing&Shipping

waterjet cutting machine for glass cutting with TUV CE ISO9001 certifications and 3 Years warranty

certifications

waterjet cutting machine for glass cutting with TUV CE ISO9001 certifications and 3 Years warranty

Advantage & App

waterjet cutting machine for glass cutting with TUV CE ISO9001 certifications and 3 Years warranty



Price Terms︰ Fob Nanjing /Shanghai
Payment Terms︰ T/T , L/C
Packing︰ 1.Whole film packaging machine; 2.Anti-collision package edge; 3.Fumigation-free plywood wooden box with iron binding belt.
Lead Time︰ 35 days
Standards Certificate︰ CE .TUV. ISO 9001

Product Image
